● XY servo table for fluxing. Z1 for drop jet flux 1, optional with Z2 for drop jet flux 2. also optional distance between drop jet flux adjustable by software.
● Top preheating zone, bottom IR zone.
● Solder section both standard equipped with IR preheating zone at top.
● XY servo table for solder station, servo axis Z1 for solder pot 1. servo axis Z2 for solder pot 2. Optional with electro-magnetic pump made in Germany.
● Standard equipped live-on camera for both solder pot’s soldering process.
● Standard equipped with wave height calibration.
● Windows 10 system English version.

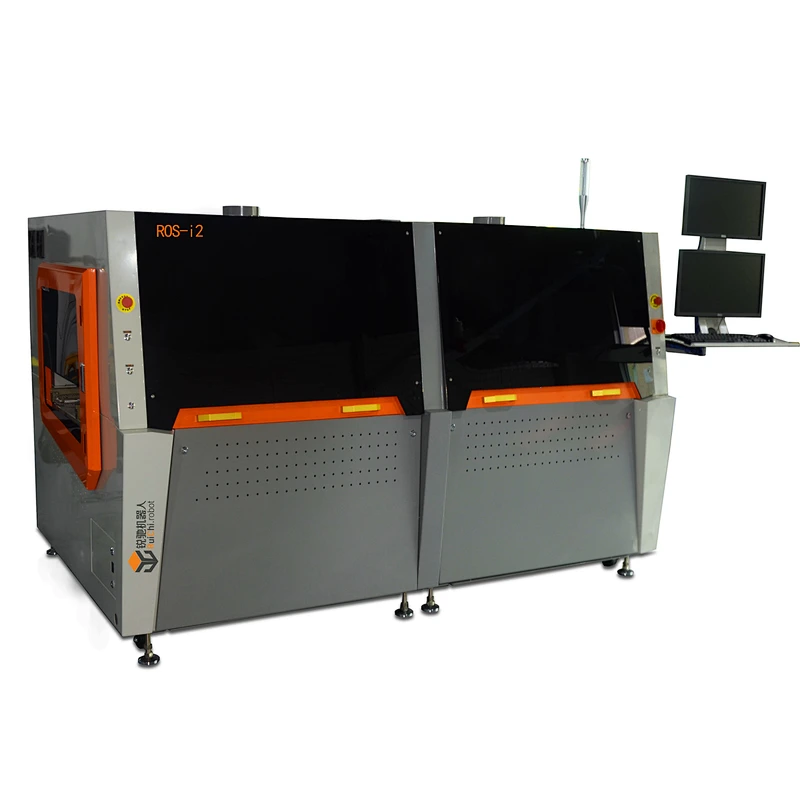

ROS-i2 Specifications
Item
ROS-i2
General
Operating power/Max power
6KW/20KW
PCB dimension
Min W80xL100—Max PCB W457.2 x L508mm (18″ x 20″) (Two nozzle solder individually) Max PCB W508 x L508mm (20″ x 20″) (Two nozzle solder parallel)
Machine dimension
2700(L)*1725(W)*1650(H)
Net weight
1500KG
Power supply
3PH 380V 50HZ
Air supply
3-5 bars
Exhausting required
800M3/h
PC
Yes
Typical Program Time
10 Minutes
PCB Robotic Platform
Flux Nozzle Type
drop jet fluxer made in Germany
Flux Nozzle Quantity
Standard equip 1 set, optional to equip another set
Flux Tank Capacity
1L
Flux Tank Quantity
Standard equip 1 set, optional to equip another set (when use two different flux)
preheat
Preheating method
Top hot air,bottom IR
Solder Management
Solder pot type
Standard equipped with mechanical pump, optional with electromagnetic pump (made in Germany)
