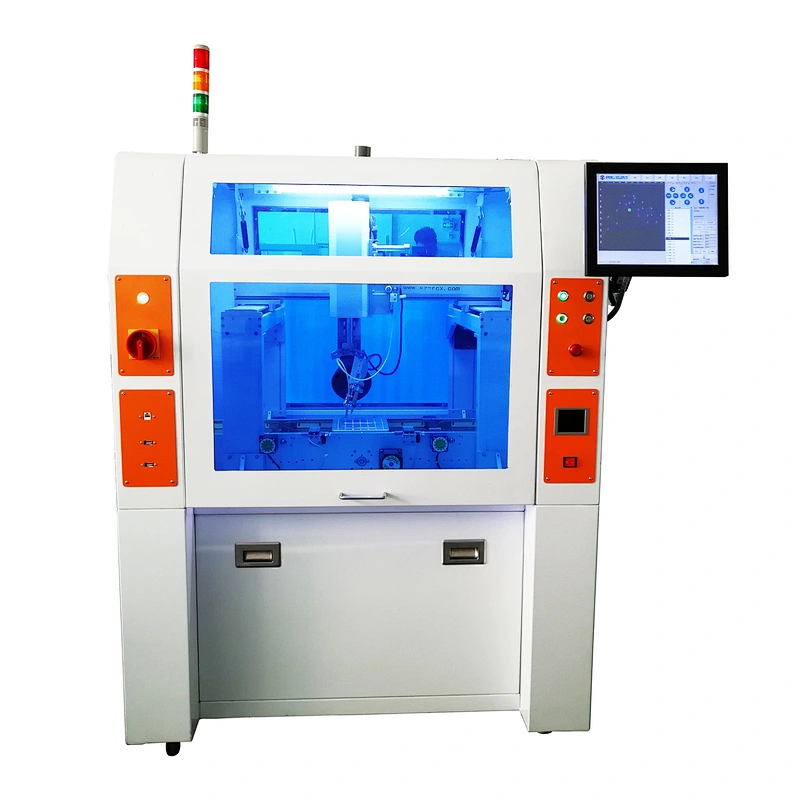

In-line Type Soldering Robot
Model No.: RF331
Product Details:

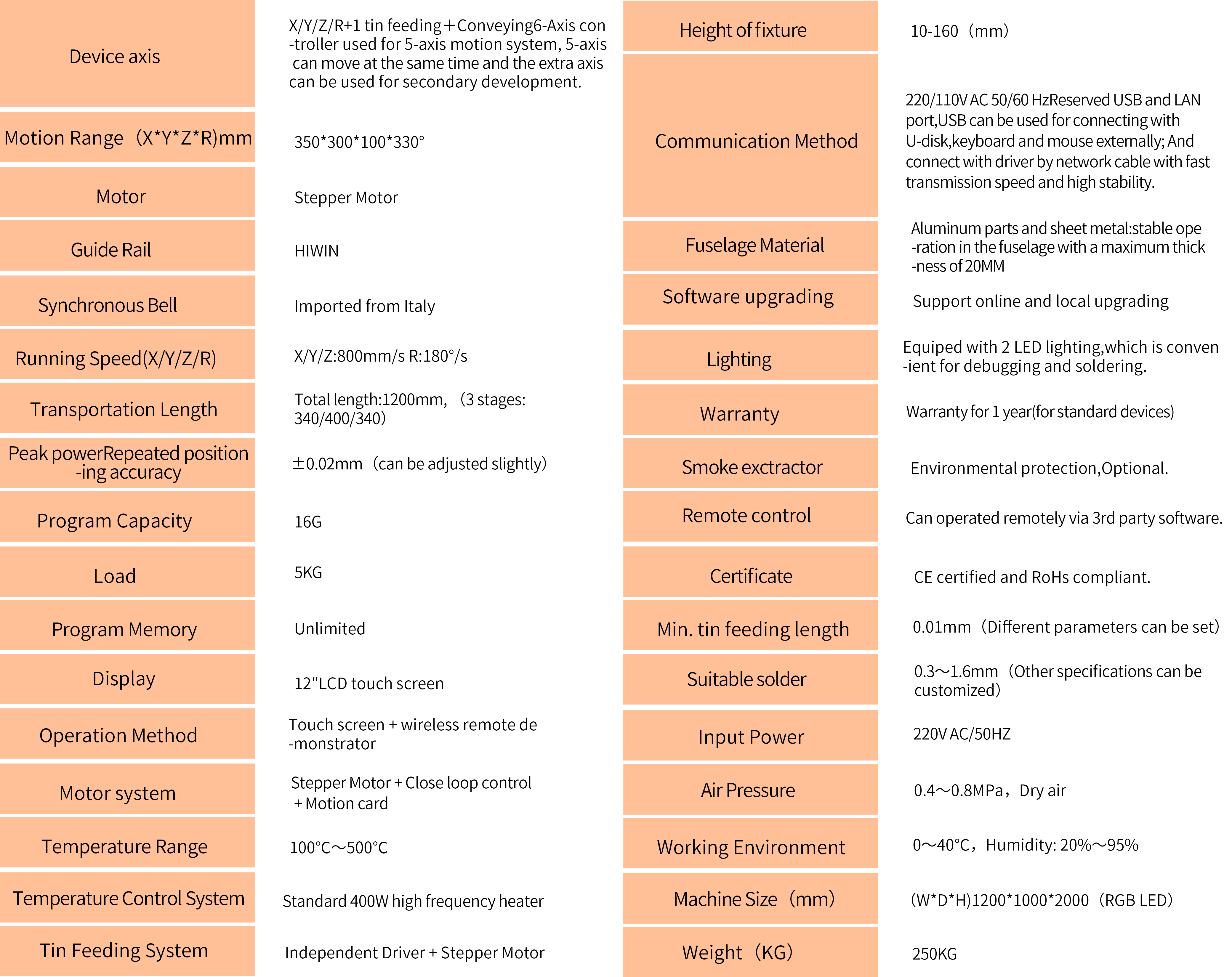

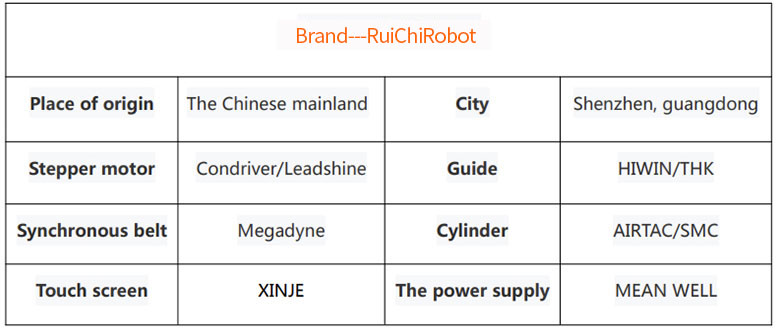

Technical Data:
Product Features:
1.Directly connect with the previous process conveyer ntelligently to achieve unmanned operation;
2.Based on independent research and development of dedicated control system development software;

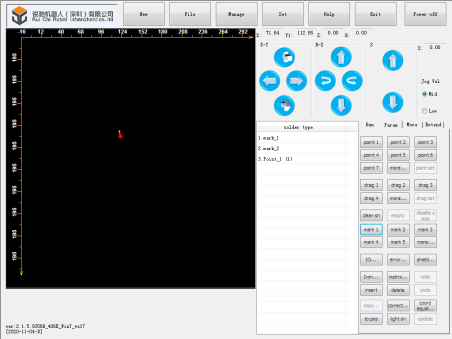

3.High-definition touch screen man-machine interface, dynamic display of running track;
4.Support product barcode reading;
5.Support customer site MES system;
6.The rights management mode prevents the operator from modifying the operating parameters by mistake;

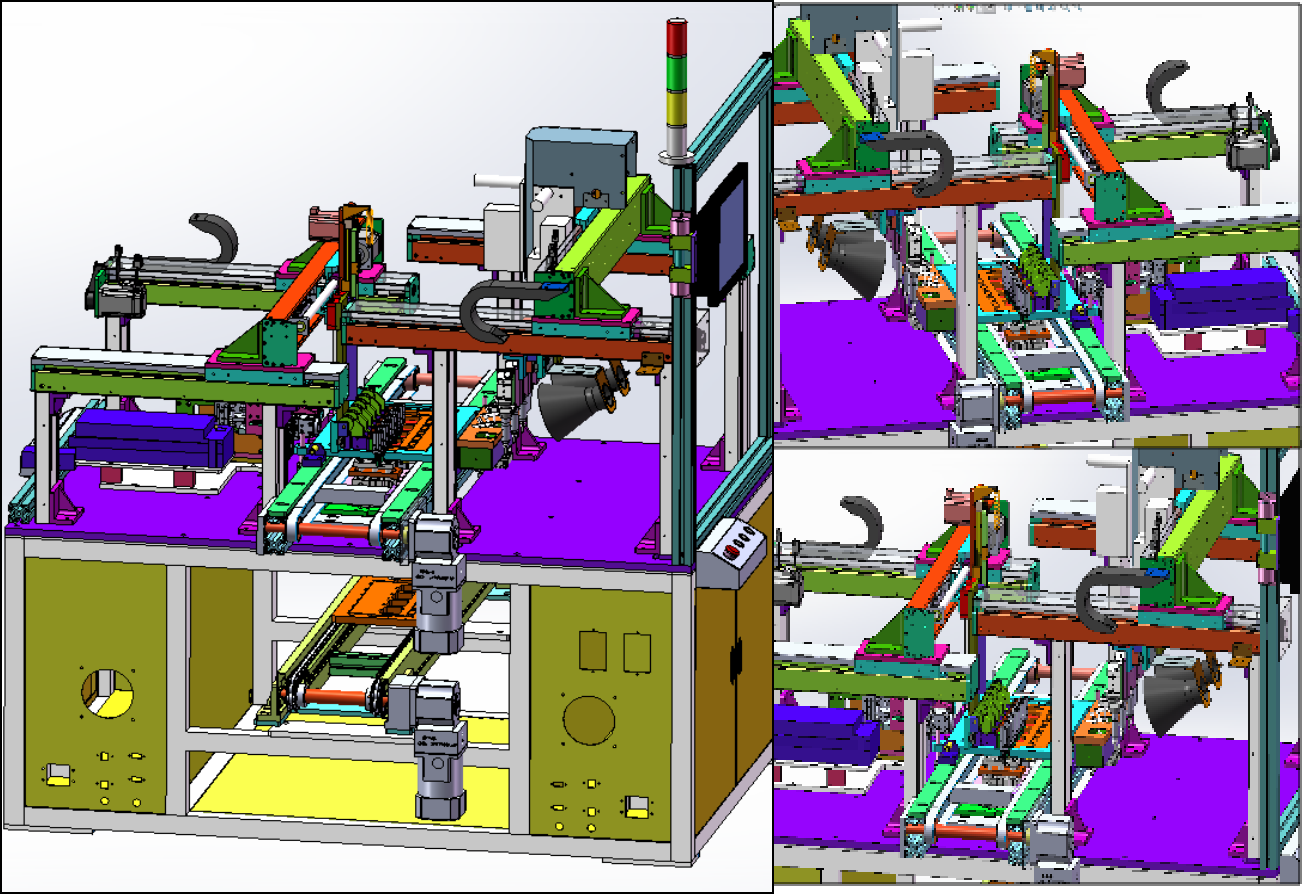

Equipment Frame：
Standard frame, all-metal sheet,open the door by mistake to start the safety device, alarm will be activated and device shutdown.
Transportation：
1.Direction of Transportation：Left=>or Right=>Left
2.Transportation Method： 3-stage design motor drive (input plate temporary storage section, positioning soldering section, output plate transfer section)
3.Transportation Speed：0-400mm/s
4.Transportation Width：50-300(Optional)
5.Bottom return fixture (for use with lift)
Application:
WHAT PROBLEM DOES AUTOMATIC SOLDERING MACHINE SOLVE FOR US?
Double-point soldering tip with two tin feeding wires to solder two points at the same time,
which can solve the problem of soldering precision and improve the soldering efficiency.
The soldering spots of the product are distributed evenly and densely, which is suitable for line solder(drag solder)
when arranged in rows.It can save time and improve the soldering efficiency of automatic soldering.
Suitable for connector, display pin and other electronic devices.
Additional CCD camera fiducial positioning, automatically correct deviation of fixture and product, ultra-high precision positioning.
Ruichi Advantages:
A.Equipment advantages

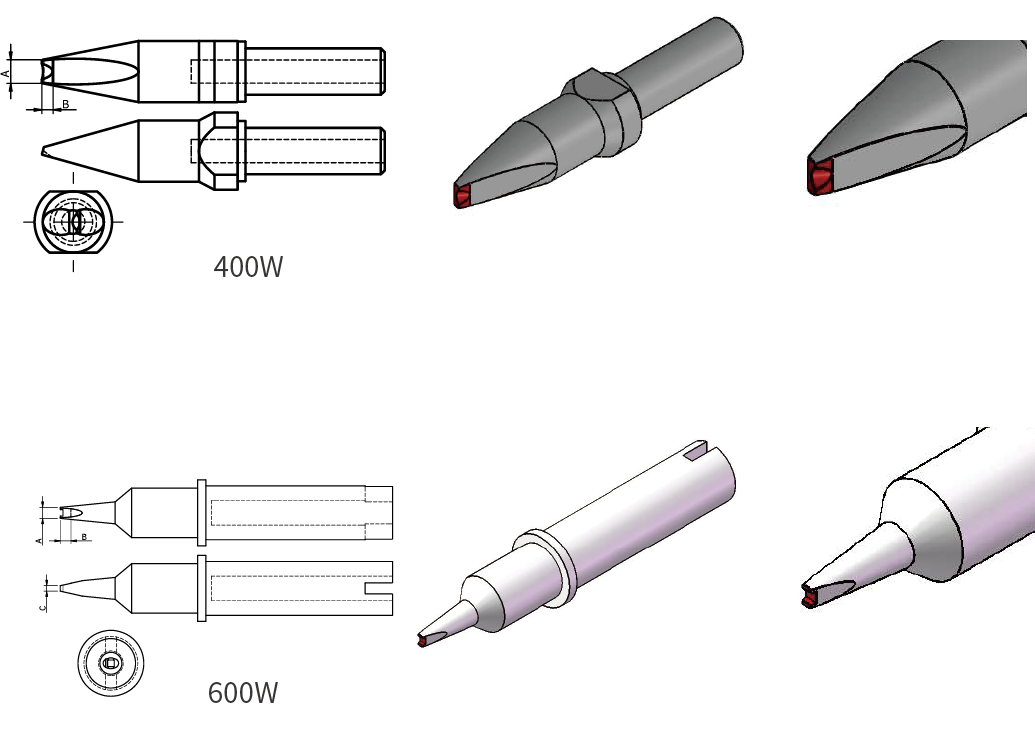

Advanced Feature 1:RuiChi 400W/600W Soldering power
1、High power rate, fast temperature recover
2、High power rate, enable more stable temperature

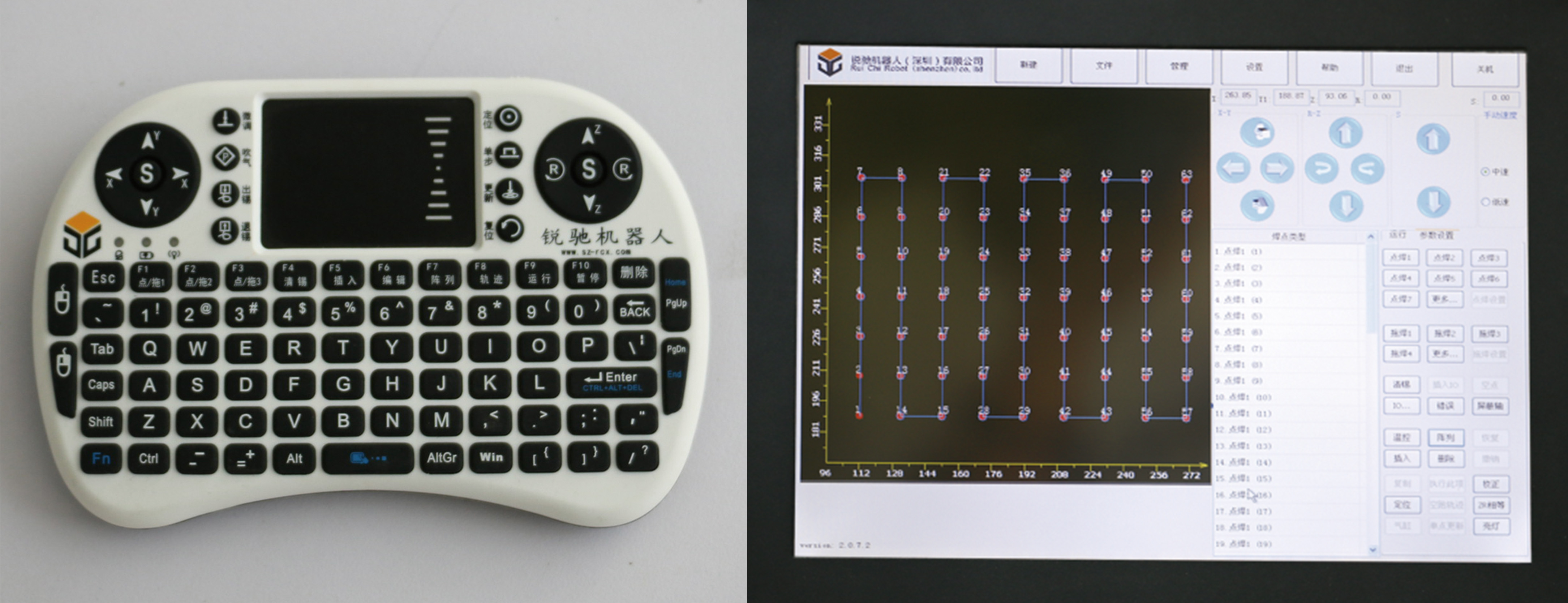

Advanced Feature 2: touch screen + 3in1 wireless remoter
1、stereo of operation windows
2、Quickly transfer between different program
3、Easy operation, simple process for program setting

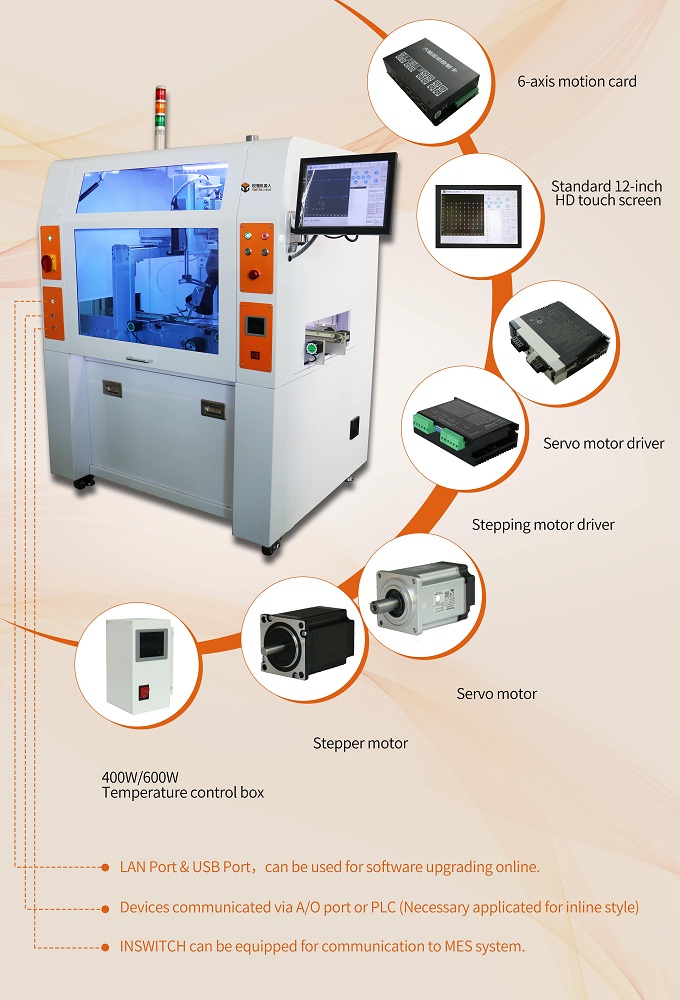

Advanced Feature 3:Industrial PC control
1、Fast running speed
2、Huge storage space
3、Various way to build working network
4、Extra IO port standby for further development
B. 6 major independent core technologies
1.Cloud-based soldering machine status detection, fault warning and diagnostic technology.

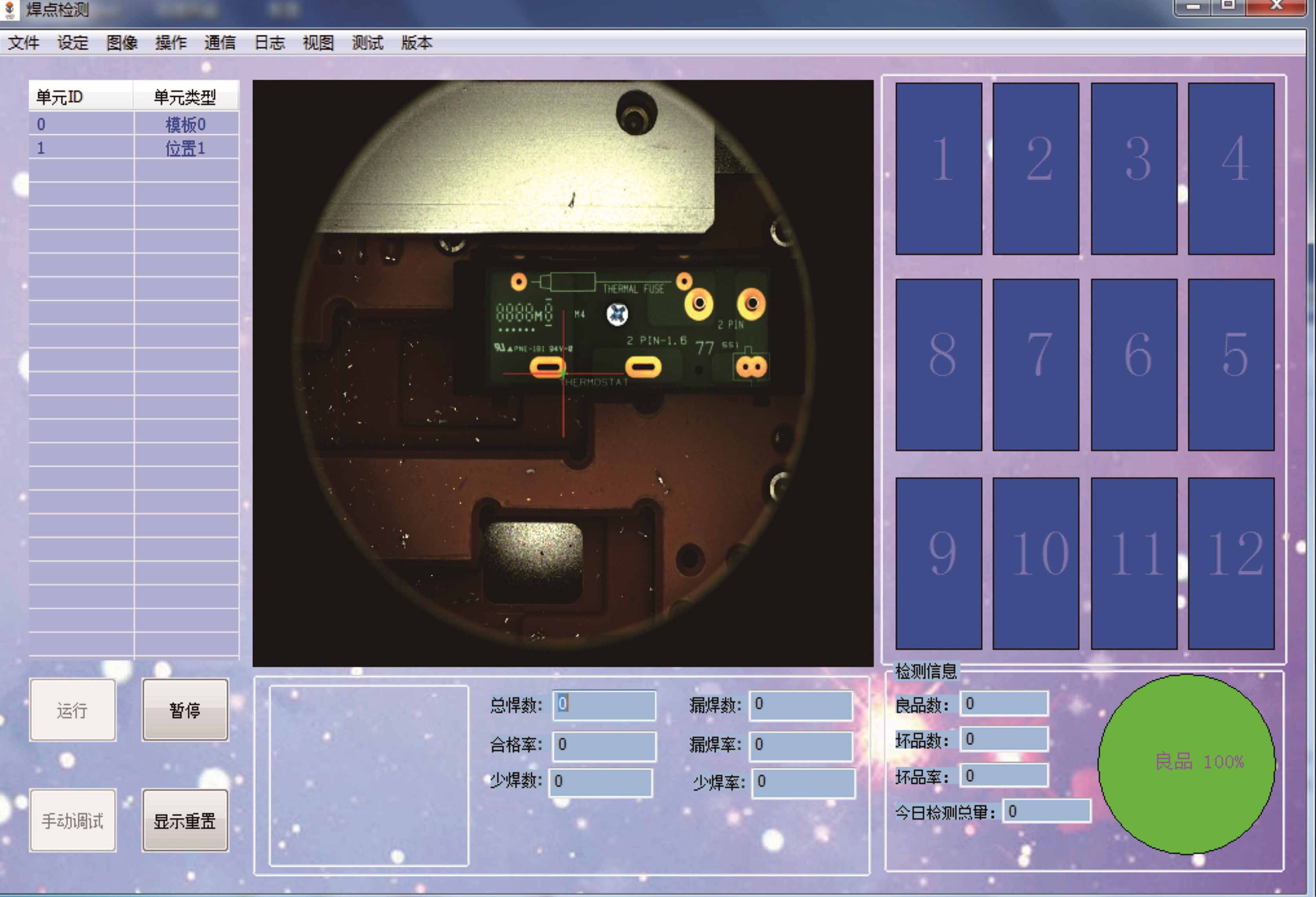

2.Optical Automatic Inspection (AOI) Technology for Solder Joint Quality.

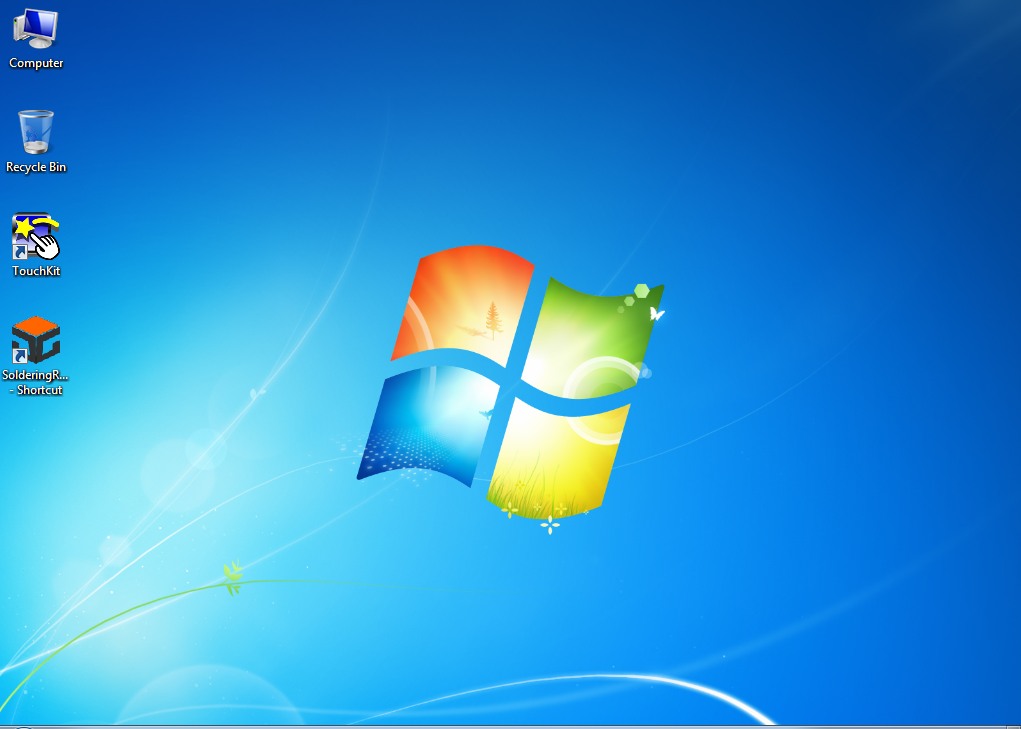

3.Soldering system developed based on Windows OS.
4.Non-standard component insertion and soldering technology.
5.Flexible wire soldering technology.

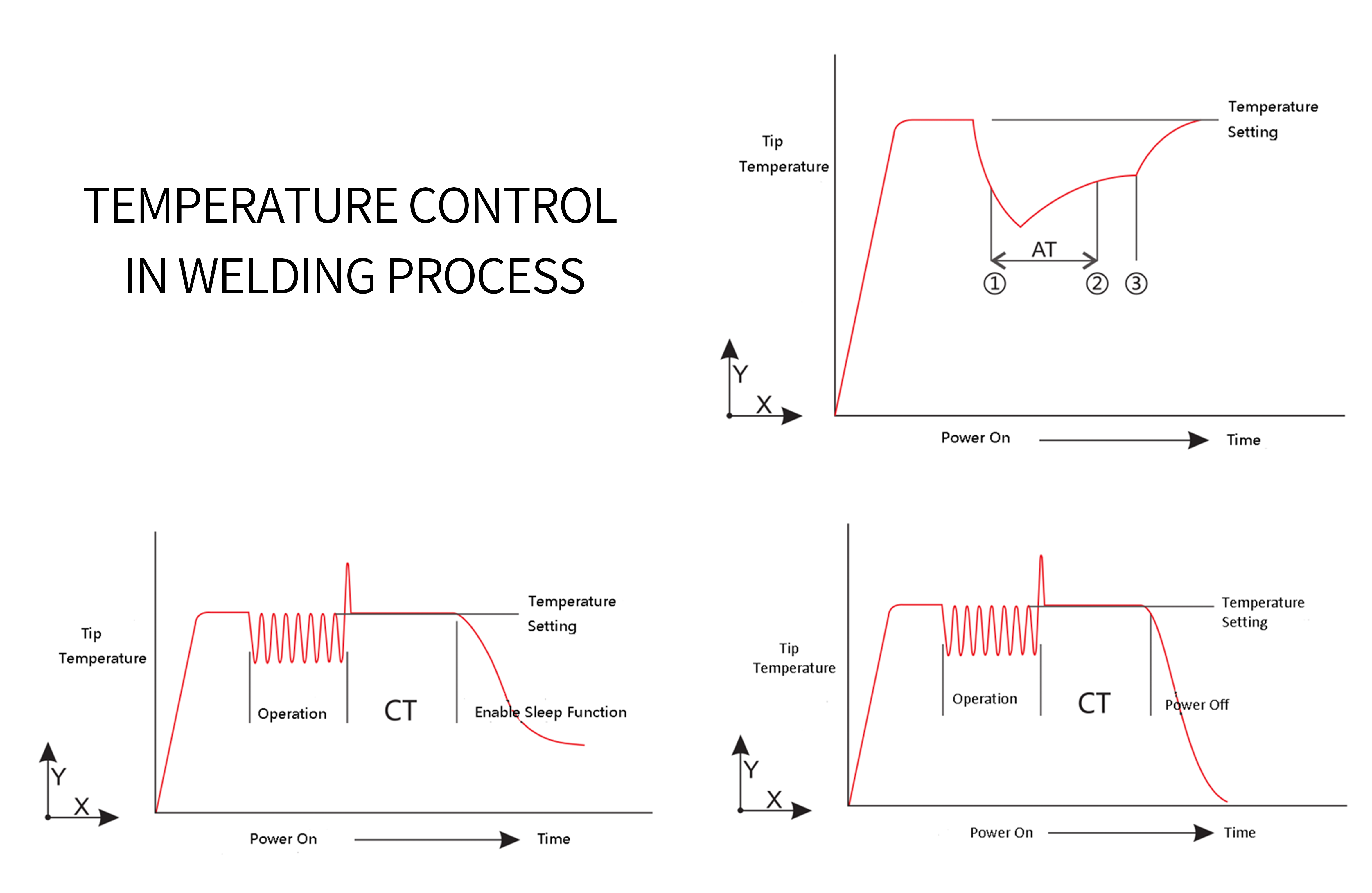

6.Fast and High Precision Temperature Control Technology Based on Power Compensation.
C.After-sale Service
I: Three ways support guarantees for full channel service
1、Telephone support: 7*24 hours manual service;
2、Offline support: engineer-to-door for one-to-one service;
3、Online support: Ruichi WeChat public account & official website for one-click consultation;
II、II: Three free items for your money and labor saving
1、Free software upgrade service;
2、Free system technical training;
3、Provide 2 years quality guarantee,. Free to exchange new machine for quality problem units, free after-sale service for second year(China only)

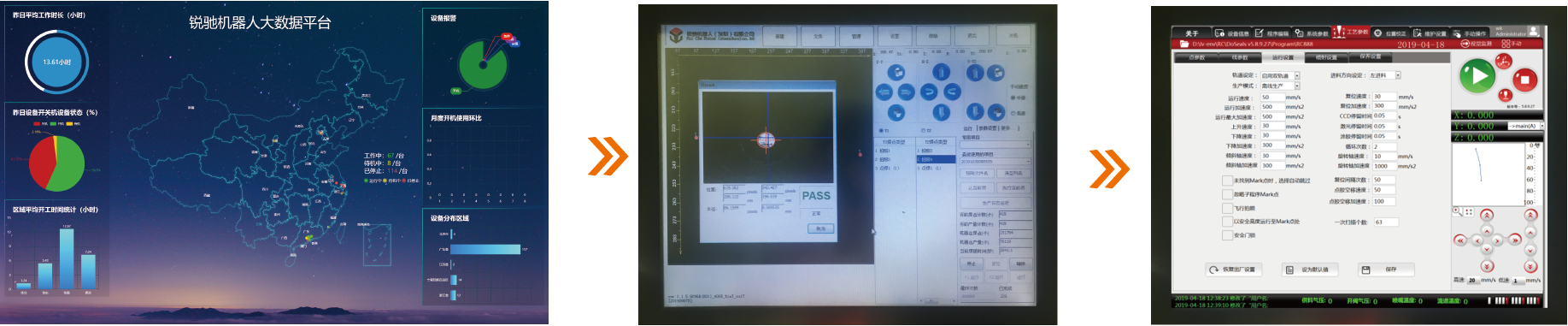

III、III: Smart cloud system, enable you do everything in your palm

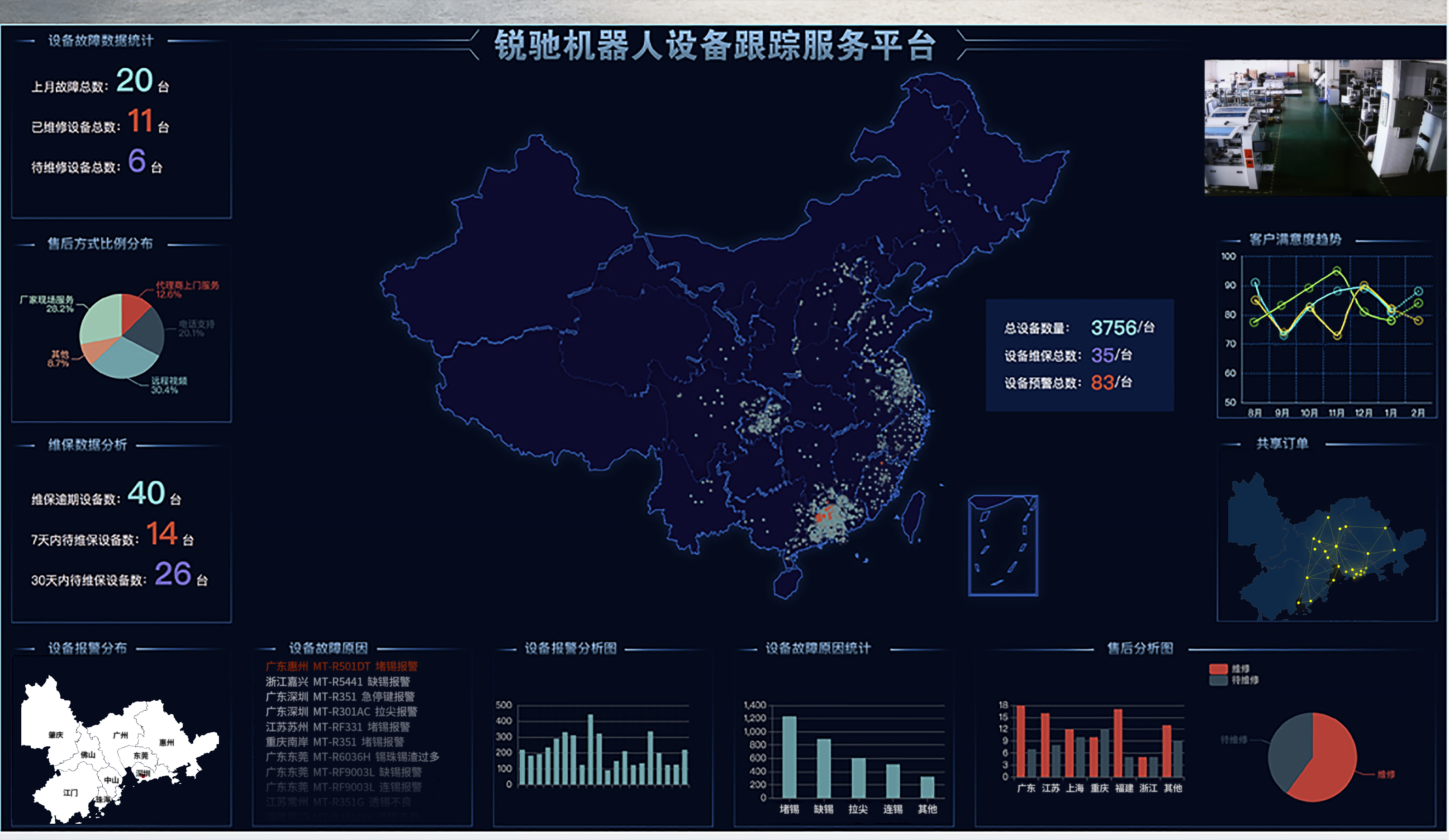

1、Big data platform tracks the working status of each machine;
2、Real-time detection, fault early warning and diagnosis through cloud;
