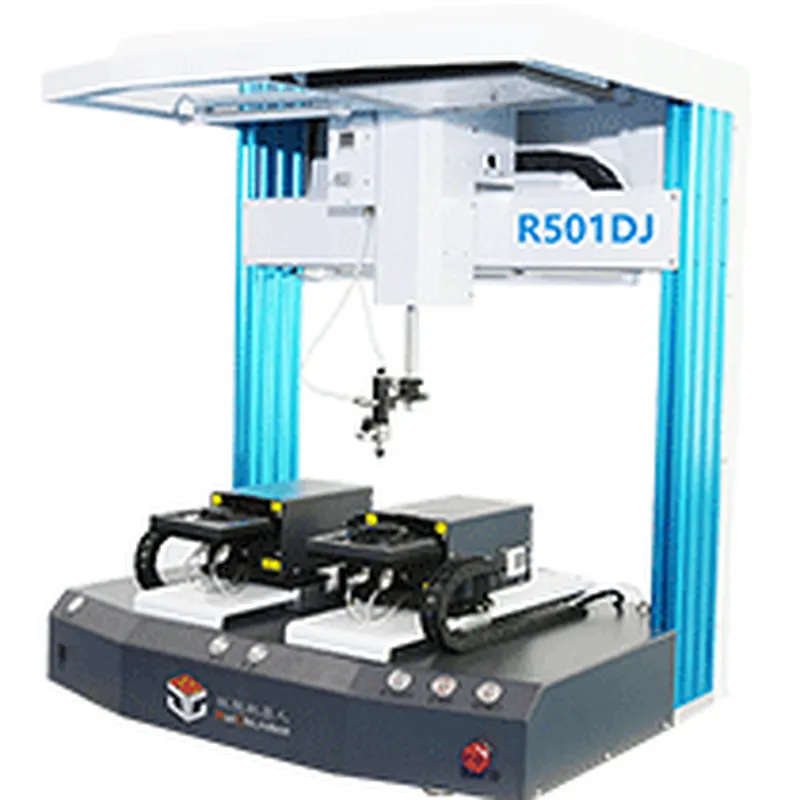

Dispensing Robot R501DJ
Short Description:
1.Functions of drawing points, lines, surfaces, circle, consecutive interpolation of irregular curves and three-axes linkage.
2.Excellent teaching function to support array,graphical browsing,3D ellipse,common graphical library inserting,group editing and so on.
3.32G capacity PC unlimited memory dispensing process file.
4,The size of glue, speed of glue spread, dispensing time, time of halting dispensing can be set.
5.With Second special dispensing controller,glue output is quite stable without leaking and dripping.
6.The function of automatic gel prevention can effectively prevent glue curing to jam needle head.
7.Powerful PC compatibility with the Logoshop software can import mainstream design software(such as Auto CAD,Coral Draw,etc.) to generate a variative of file formats(such as,.NC,.AI,.DXF,.JPG,.BMP,scanner,etc.).
PRODUCT DETAIL
| No.of axes | 4 axes |
| Equipment travel (X*2Y*Z*2R)mm | 500*350*350*100*180° |
| Process table | 2 PCs |
| Running speed (X/Y/Z/R) | X/Y/Z:600mm/s R:180°/s |
| Repeatability accuracy | ±0.02mm |
| Program capacity | No limited |
| Payload | 10KG |
| Display mode | 12 inch HD touch screen |
| Operation mode | Touch screen + wireless remoter |
| Motion system | Stepping motor + closed return circuit control + motion control card |
| Temperature range | 100℃～500℃ |
| Heater system | Standard 400W high frequency silver heater core |
| Feeding system | independent driver + stepping motor |
| Fixture Height | 10-160（mm） |
| Shell material | Aluminum alloy plate:For make sure table running to use 20mm thickness base plate |
| Control software upgrade | Allow online & local upgrade |
| Lighting | Full range extend on X axis cover whole working table |
| Guarantee period | One year after setup to use |
| Dispensing head cleaner | Mobile collection barrel |
| Remote support | Third-party control software |
| Certification | CE |
| Apply | Different glue |
| Power supply | 220V AC/50HZ |
| Air Pressure | 0.4～0.8MPa dry & clean |
| Working condition | 0～40℃，TEM 20%～95% |
| Dimension（mm） | （W*D*H)750*580*850 |
| Net weight（KG） | 115KG |
Features:
1.Functions of drawing points, lines, surfaces, circle, consecutive interpolation of irregular curves and three-axes linkage.
2.Excellent teaching function to support array,graphical browsing,3D ellipse,common graphical library inserting,group editing and so on.
3.32G capacity PC unlimited memory dispensing process file.
4,The size of glue, speed of glue spread, dispensing time, time of halting dispensing can be set.
5.With Second special dispensing controller,glue output is quite stable without leaking and dripping.
6.The function of automatic gel prevention can effectively prevent glue curing to jam needle head.
7.Powerful PC compatibility with the Logoshop software can import mainstream design software(such as Auto CAD,Coral Draw,etc.) to generate a variative of file formats(such as,.NC,.AI,.DXF,.JPG,.BMP,scanner,etc.).
